Why hull hydrodynamics matter for fuel efficiency

Hull hydrodynamics — the study of how water flows around a ship’s hull — is the single most important discipline when it comes to reducing a vessel’s fuel consumption. Every liter of fuel saved through smarter hull design directly lowers operating costs, CO₂ emissions, and the frequency of maintenance stops. At sea, most of a ship’s energy is spent overcoming resistance created by the water and air around it. The hull’s shape, surface condition, and how it interacts with the propulsor determine how much of the engine’s output actually produces useful forward motion.

Scope of the article and who this helps

This article explains the core hydrodynamic concepts that control fuel use, and links them to practical design and operational choices. It’s written for naval architects who design hulls, ship operators and technical managers who must make retrofit and operational decisions, and engineering students seeking a concise, practical primer on how hull form affects fuel economy.

2. Hydrodynamics 101: Basic Concepts

Fluid properties that matter (density, viscosity)

Two fluid properties dominate hydrodynamic behavior: density (ρ) and dynamic viscosity (μ). Density sets the amount of mass the hull needs to accelerate around it; viscosity governs how “sticky” the water is — that is, how momentum diffuses from the hull into the fluid. Cold, dense water increases resistance compared with warm water at the same speed; viscous effects dominate skin friction and boundary-layer thickness. Designers account for these properties when extrapolating model tests to full-scale ships.

Key dimensionless numbers: Reynolds number & Froude number

Dimensionless numbers allow us to compare different ships and scales without getting lost in units.

• Reynolds number (Re) = U·L / ν
• U = characteristic speed (m/s)
• L = characteristic length (m), typically ship length between perpendiculars
• ν = kinematic viscosity (m²/s)
  Re measures the ratio of inertial to viscous forces. High Re implies turbulent boundary layers where skin friction is higher but predictable using empirical formulas.
• Froude number (Fr) = U / √(g·L)
• g = gravitational acceleration (9.81 m/s²)
  Fr measures the importance of gravity-wave formation relative to inertial effects. It governs wave-making resistance: two geometrically similar hulls at the same Fr have similar wave patterns.

Both numbers are essential in model testing and CFD scaling. You cannot predict wave-making behavior with Re alone — Fr is critical — and vice-versa for viscous drag.

Laminar vs turbulent flow and boundary layers

Flow near the hull exists in a thin boundary layer where viscous forces matter. At low Re the layer is laminar (smooth), but almost all practical ships operate in turbulent boundary layers. Turbulence increases skin friction but also stabilizes flow and resists separation. Managing the transition location, boundary-layer thickness, and preventing early separation are central to minimizing drag.

3. Types of Hull Forms and Their Fuel Impacts

Displacement vs planing hulls — fundamental differences

• Displacement hulls (cargo ships, tankers, conventional passenger ferries) push water aside and always displace their own weight in water. Their operating regime is characterized by wave creation and typically low Froude numbers. Fuel efficiency is achieved by minimizing wave-making and skin friction.
• Planing hulls (fast launches, high-speed ferries, some patrol boats) generate dynamic lift at higher speeds so the hull partially skims the surface, drastically reducing displaced volume and wave-making beyond certain speeds. Planing hulls can be more fuel-efficient at high-speed operations but are penalized at lower speeds and when heavy loads are present.

Mono-hull, catamaran, trimaran, SWATH — comparative fuel traits

• Monohull: Traditional single-hull forms balance construction simplicity and cargo volume with predictable hydrodynamics. They tend to have higher wave-making at higher speeds but can be optimized for steady displacement efficiency.
• Catamaran: Two slender hulls reduce wave-making and wetted surface for a given displacement at moderate to high speeds; popular for fast ferries because they offer reduced resistance and improved seakeeping, but require wider decks and different docking arrangements.
• Trimaran: Central hull with two outriggers — offers excellent slenderness and good seakeeping with potential fuel savings for high-speed vessels and certain naval applications.
• SWATH (Small Waterplane Area Twin Hull): Very low hull-waterplane area reduces wave response and motions in rough seas. SWATHs have large submerged volume and higher structural complexity; fuel economy benefits are most visible in seakeeping and mission availability rather than outright fuel-per-nautical-mile savings in calm water.

Influence of slenderness ratio and length-to-beam on resistance

Slender hulls (high length-to-beam ratios) produce smaller wave systems for the same speed and so can be more economical in terms of wave-making. However, slenderness increases wetted surface area relative to volume and can raise skin friction. The designer’s task is to pick the slenderness and sectional shapes that minimize the combined viscous + wave-making resistance for the vessel’s intended speed and mission.

4. Components of Resistance

Understanding total resistance as the sum of separate contributions helps prioritize design and operational interventions.

Frictional (skin) resistance — what it is and why it dominates at lower speeds

Skin friction arises from shear stress between the hull surface and the water. In many displacement vessels operating at modest speeds, skin friction is the dominant resistance component. Its magnitude depends on wetted surface area, surface roughness, hull geometry (which affects boundary-layer development), and Reynolds number. Minimizing wetted area for a given displacement and maintaining a smooth, foul-free surface are therefore primary tactics for reducing fuel use.

Wave-making resistance and its dependence on speed and hull shape

Wave-making resistance is the energy expended to generate the bow and stern waves. It typically increases rapidly with Froude number and dominates at higher speeds for displacement ships. Hull forms that produce gentle longitudinal pressure distributions reduce wave-making. The bulbous bow is a classic anti-wave device: by changing the local pressure field ahead of the bow, it generates a wave that interferes destructively with the bow wave, reducing net wave-making in a specific speed range. Important: bulbous bows are highly speed-dependent — outside the optimized range they can increase resistance.

Form and viscous pressure drag (separation)

Form drag results from pressure differences due to flow separation around blunt or poorly faired sections (stern flare, abrupt transoms). Viscous pressure drag increases with separated flow and eddy formation. Designers use tapered sections, fine stern lines, and attention to the section curvature to delay separation and keep the pressure recovery smooth.

Air resistance and appendage drag (rudders, shafts, bulbs)

At typical merchant-ship speeds, air resistance (windage) may represent a modest but non-negligible portion of resistance, particularly for container ships with large above-water area. Submerged appendages — shafts, rudders, bilge keels, sonar domes, and stabilizer fins — add to wetted area and produce complex wakes that increase both form drag and propulsive inefficiency. Minimizing appendage area, fairing struts, and choosing optimized rudder profiles or energy-saving rudders (ESR) reduces this penalty

Real-world Illustration: Why small speed changes matter

A practical rule of thumb: required propulsive power scales roughly with the cube of speed for displacement vessels in the wave-making regime. That means a modest speed reduction can produce outsized power (and fuel) savings.

Example (digit-by-digit arithmetic):

• Starting speed = 24 knots. Reduced speed = 18 knots.
• Ratio = 18 ÷ 24 = 0.75.
• Cube of ratio = 0.75 × 0.75 × 0.75 = 0.421875.

So the required power at 18 knots is about 42.19% of the power required at 24 knots — a 57.81% reduction in required power. This explains why slow-steaming strategies can yield very large fuel savings per hour; however, operators must balance longer voyage times and schedule constraints when calculating total fuel per voyage.

Practical Design & Operational Takeaways

• Wetted area control: Keep hull surface area to the minimum consistent with stability and payload. Use longitudinal framing and careful tank arrangements to reduce hull girth without compromising strength.
• Surface maintenance: Anti-fouling coatings, regular hull cleaning, and propeller polishing pay off quickly. Even thin biofouling layers measurably increase skin friction.
• Propulsor–hull matching: A well-matched propeller operating near its best-efficiency point (BEP) in the wake field yields lower specific fuel consumption. Wake-adapted propellers and boss-cap fins reduce losses.
• Trim management: Active trim control via ballast or interceptors can keep the hull in its most efficient attitude and reduce resistance.
• Speed optimization: Use voyage planning and weather routing to choose speeds that minimize total fuel burn given sea state and schedule.

Related-Items Table

Topic	Short description	Why it matters	Where to learn more
Bulbous bow	Forward projection that modifies bow wave	Reduces wave-making in specific speed ranges	Naval architecture textbooks, industry papers
Air lubrication	Air layer reduces wetted friction	Potential fuel reduction for large ships	Research journals & pilot projects
CFD software	Tools to simulate flow & resistance	Enables virtual optimization before build	Supplier docs & validation studies
Hull coatings	Low-friction, anti-fouling paints	Directly lowers skin friction and fouling growth	Coating manufacturers’ tech notes
Propeller types	Fixed/controllable pitch, ducted, contra-rotating	Critical for matching hull wake and efficiency	Propulsor design texts and case studies

5. Hull Geometry Parameters That Matter

Prismatic coefficient and block coefficient — definitions and design targets

·         Block coefficient (C_B) = Displacement volume / (L · B · T)

o    Where L = length between perpendiculars, B = beam, T = draft.

o    Meaning: how “full” the hull is compared with a rectangular block that encloses it.

o    Typical targets: large tankers and bulk carriers: high C_B (≈0.75–0.85+) for volume efficiency; fast cargo and passenger ships: lower C_B (≈0.55–0.70) to reduce wave-making at higher Froude numbers.

·         Prismatic coefficient (C_P) = Displacement volume / (A_m · L)

o    Where A_m is the midship section area.

o    Meaning: describes longitudinal distribution of volume — whether volume is concentrated amidships (low C_P) or distributed toward ends (high C_P).

o    Design targets:

§  Slow, heavy-displacement ships: higher C_P (~0.65–0.75) to minimize wave-making at low speeds and improve carrying capacity.

§  Fast ships and those optimized for wave-penalized speeds: lower C_P (~0.50–0.62) to reduce wave resistance and allow finer ends.

Design trade-off: increasing C_B/C_P helps capacity and fuel economy at low speeds but raises wave-making and wetted area penalties at higher service speeds. Designers choose coefficients to match the ship’s design operating point (speed, load condition).

Sectional area curve and midship section shape

·         Sectional area curve (SAC): longitudinal curve of cross-sectional area versus distance along the hull. A smooth SAC with gradual changes avoids abrupt pressure gradients that create waves and separation. The SAC’s longitudinal distribution strongly affects wave-making; double-humped or abrupt peaks cause unfavorable wave systems.

·         Midship section shape: the midship area determines transverse stability and the local boundary-layer behaviour. Fuller midships raise displacement for a given hull girth but increase wetted area. Fine midships reduce wetted area but can compromise transverse stiffness and deck volume.

Rule of thumb: aim for a sectional area curve that produces gentle pressure gradients fore and aft — sharp variations worsen wave-making and stern flow quality.

Stern shape, transom design and resistance consequences

·         Fine sterns taper flow gradually, reducing separation and pressure drag — good for vessels operating at moderate Froude numbers.

·         Transom sterns (flat afterwater) are common on many commercial and fast vessels; they can create vortex shedding and transom wave-making at certain speeds. At higher speeds, a well-designed transom can provide desirable pressure recovery and reduce stern wave formation.

·         Skeg and cutaway sterns influence propeller inflow. A poorly shaped stern creates turbulent, uneven wake that reduces propulsor efficiency and increases cavitation risk.

Design takeaway: the stern must be designed as a system with the propeller — what looks hydrodynamically “clean” without the propulsor may produce a suboptimal wake once the propeller and appendages are added.

6. Surface Roughness, Coatings & Fouling

How roughness increases skin friction

Surface roughness (paint degradation, barnacles, slime) increases the local shear stress in the boundary layer and thickens the viscous sublayer, raising skin friction. Even thin biofouling films can add measurable percent increases in fuel consumption; heavier fouling compounds the penalty. The effect grows with speed and Reynolds number — at higher service speeds the fuel penalty can become significant.

Anti-fouling paints, coatings, and maintenance schedules

·         Copper-based and biocide-release paints are traditional anti-fouling options; they slow organism settlement but require re-coating at refits.

·         Foul-release, low-friction coatings reduce adhesion strength and make cleaning easier.

·         Operational schedules: proactive hull inspections and cleaning (typically 1–3 times/year depending on trading area) plus condition-based cleaning triggered by performance loss is best practice.

New surface technologies (hydrophobic coatings, low-friction paints)

Emerging coatings aim to lower friction coefficients (µ) and reduce fouling propensity. Hydrophobic and nano-structured surfaces offer promise in reducing drag, and “slippery” foul-release coatings make in-water cleaning more effective. While not a single cure-all, improved paint systems combined with regular cleaning are among the most cost-effective fuel-saving measures.

Operator tip: monitor speed-specific fuel consumption continuously — rising SFOC at constant engine load is often the first sign that hull roughness needs attention.

7. Bulbous Bows and Wave Cancellation

Principle of bulbous bow performance

A bulbous bow creates a pressure wave that interferes with the bow wave generated by the hull, reducing the overall wave-making energy. Essentially it shifts the phase and amplitude of local waves so destructive interference occurs in the region ahead of the bow, lowering wave crest heights and the energy the hull must put into wave formation.

Speed ranges and optimization limits

Bulbous bows are highly speed- and loading-dependent. They are most effective when the ship operates consistently in a narrow Froude window (typical of liners, container ships, and tankers at service speed). Outside this window—at very low speeds, in light-load conditions, or at high planing speeds—the bulb can increase resistance by creating adverse wave systems.

Retrofit vs new-build considerations

·         New-builds: integrate bulb geometry with hull lines, optimizing bulb volume, length, and position for the design speed and load range.

·         Retrofits: can be effective but require careful hydrodynamic analysis and structural modification. Retrofitting may be less effective if the existing hull geometry and operational profile don’t match the bulb’s optimized range.

Practical note: always validate bulb performance via CFD and (if feasible) model tests before committing to a retrofit.

8. Propulsor–Hull Interaction

Wake field, wake fraction and effective inflow to the propeller

The hull produces a non-uniform velocity field (wake) at the propeller plane. Wake fraction quantifies the average reduction in inflow velocity caused by the hull; it directly affects propulsive thrust and efficiency. A dirty or uneven wake increases required propeller loading, leading to higher engine power to maintain speed.

Cavitation, vibration and efficiency loss

When local pressure on propeller blades drops below vapor pressure, cavitation bubbles form and collapse — causing noise, vibration, blade erosion, and reduced propulsive efficiency. Cavitation control requires correct blade loading, skew, and matching to the wake; it’s often the limiting factor on how much power can be usefully applied without damage.

Propeller types (fixed pitch, controllable pitch, contra-rotating, ducted)

·         Fixed Pitch Propeller (FPP): simple, robust, efficient when matched to a narrow operating profile.

·         Controllable Pitch Propeller (CPP): allows pitch adjustment to match varying speed/load, improving fuel economy in variable operation.

·         Contra-rotating Propellers (CRP): recover rotational energy lost in the slipstream, improving efficiency but increasing mechanical complexity.

·         Ducted (Kort) Nozzles: increase thrust at low speeds and improve propulsive efficiency for some vessels (tugs, trawlers) but add drag at higher speeds.

Design balance: choose the propulsor that matches the ship’s mission profile and wake characteristics while considering maintenance and initial cost.

9. Hull–Propeller Matching & Optimization

Open-water curves and matching propeller to operating point

Open-water curves show propeller thrust, torque, and efficiency versus advance coefficient. Good hull–propeller matching places the operating point near the propeller’s maximum efficiency and within cavitation limits for the expected wake distribution.

Effects of rpm, pitch and gearbox selection on fuel consumption

·         Choosing appropriate gearbox ratios and propeller pitch ensures the engine operates near its most efficient SFOC band while the propeller runs at the best advance condition.

·         CPP allows changing pitch to maintain optimal advance across different speeds, reducing engine load and specific fuel consumption in variable operations.

Propeller boss cap fins, hub design and small improvements

Minor hydrodynamic add-ons — boss cap fins, hub micro-profiles, and carefully filleted hubs — improve the inflow and reduce hub vortex energy loss. Individually these changes may yield single-digit percentage gains but are attractive because they are retrofit-friendly and low-risk.

10. Appendages, Struts & Rudders

How appendages add drag — design mitigation strategies

Appendages increase wetted area and disturb flow. Fairing struts, streamlining stabilizer housings, and retractable designs reduce drag. Where possible, integrate appendages into the hull geometry rather than adding bulky external fixtures.

Balanced rudders, twisted rudders and energy saving rudder (ESR) devices

Modern rudders (twisted or flap designs) produce steering moments with lower induced drag. Energy Saving Rudders (ESR) and bulb-type rudders recover rotational energy and improve propulsive efficiency. They are often cost-effective retrofits when propeller-induced swirl is substantial.

Skegs, bilge keels and their tradeoffs (rolling vs drag)

Bilge keels and skegs damp roll and improve comfort/operational safety, but they add drag. Ships trading in rough seas benefit from roll damping that reduces cargo heel and the operational cost of slowdowns; designers must weigh the drag penalty versus operational benefits.

11. Trim, Ballast & Load Condition Effects

How trim affects resistance and propulsion efficiency

Trim (longitudinal angle) changes the immersed underwater form: trimming stern-down can improve the running attitude and reduce wave-making for many cargo ships at service speed, but over-trimming increases stern immersion and wetted area, possibly worsening total resistance. Small changes (fractions of a degree) can yield measurable resistance differences; thus active trim management is a powerful operational lever.

Ballast management and cargo stowage strategies for optimal CoG

Careful ballast and cargo handling ensures the center of gravity (CoG) and longitudinal center of flotation keep the hull in its designed attitude. Load condition variability (heavy vs light displacement) should be anticipated in hull and bulb design — bulbs and stern shapes optimized for full load may penalize light-weather performance.

Use of interceptors and trim tabs for active adjustment

Interceptor systems and trim tabs allow real-time, hydrodynamic trim control. Automated systems, often directed by speed and draft sensors, can adjust attitude to the optimal resistance-minimizing condition during the voyage. When combined with voyage optimization, active trim control contributes to meaningful fuel savings.

12. Materials, Weight & Structural Design

Lightweight materials (aluminium, composites) vs steel — tradeoffs

·         Steel remains the industry workhorse: high strength, predictable fatigue behaviour, ease of welding and repair, low material cost per unit strength, and good fire resistance. For large bulk carriers, tankers and container ships, steel’s economy-of-scale and damage-tolerance make it the obvious choice.

·         Aluminium offers significantly lower density (~one third that of steel) so aluminium craft benefit from reduced lightship weight and lower wetted area for small-to-medium vessels (ferries, patrol boats). However, aluminium has lower stiffness per unit thickness, different fatigue and corrosion characteristics, and higher material cost. Joining/welding practices differ and repair facilities are less widespread for large aluminium structures.

·         Composites (fibreglass, carbon fibre, hybrid laminates) give exceptional strength-to-weight ratios and freedom for complex shapes, reducing part counts and enabling smooth, low-drag surfaces. Downsides are higher upfront cost, complex manufacturing and repair, susceptibility to local impact damage, and concerns about long-term UV/moisture degradation. Composites also complicate recycling and regulatory certification compared with metallic structures.

Design lens: choose materials to match vessel scale, mission profile, maintenance regime and life-cycle economics: light fast ferries benefit more from aluminium/composites, while bulk carriers favor steel.

Structural stiffness, flexing and its impact on flow separation

Hull flexibility matters for hydrodynamics. Excessive hull girder deflection or local panel flexing changes the instantaneous underwater geometry, which can:

·         alter the sectional area curve and local pressure distributions,

·         move separation points aft or forward, and

·         create unsteady wakes that reduce propulsive efficiency and increase vibration.

Designers use longitudinal framing, thicker plating, or local stiffeners to control deflections within elastic limits; finite-element analysis is paired with hydrostatic loading cases to ensure stiffness doesn’t compromise hydrodynamic form.

Long-term maintenance and life-cycle cost implications

Lightweight materials lower fuel burn but often increase CAPEX and may raise retrofit/repair costs. Lifecycle assessment (LCA) should include fuel savings, maintenance intervals, coating cycles, dry-docking frequency, and end-of-life disposal. In many commercial cases, small increases in hull-life maintenance can erase early fuel gains if not planned for holistically.

Operator takeaway: run a life-cycle cost model before choosing non-traditional materials — fuel savings must outweigh higher maintenance, insurance, or repair costs to be worthwhile.

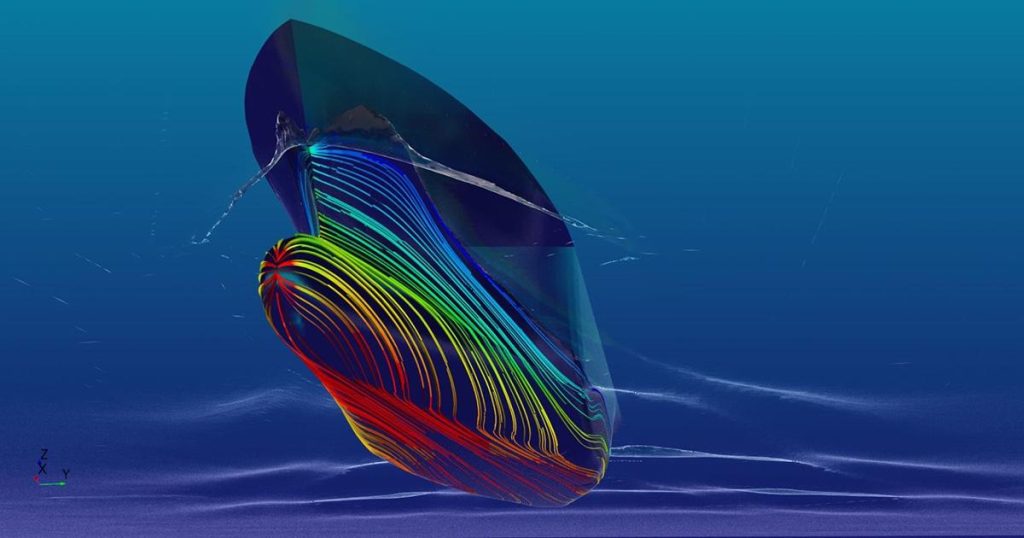

13. Numerical Tools: CFD and Simulation

RANS vs DES/LES — when to use which approach

·         RANS (Reynolds-Averaged Navier–Stokes): Efficient for steady-state resistance prediction and mean flow quantities; industry standard for initial design and parametric sweeps. RANS models (with appropriate turbulence closures) predict global resistance well for attached flows.

·         DES (Detached-Eddy Simulation) / LES (Large Eddy Simulation): Resolve unsteady, separated flows and large-scale vortical structures. Use DES/LES when transient phenomena matter: intense separation behind transoms, rotor–wake interactions, cavitation inception studies, or detailed wake dynamics for advanced propulsor design. LES is more expensive but gives higher fidelity; DES is a hybrid compromise.

Meshing, boundary conditions and validation with physical tests

Good CFD starts with proper mesh: fine boundary-layer inflation (to capture y+ and viscous sublayer behaviour), adequate refinement in regions of expected separation, and smooth transition from viscous to outer elements. Boundary conditions must reproduce free-surface effects (VOF or similar), incoming waves if relevant, and correct symmetry. Crucially, CFD must be validated against model tests or full-scale trials — otherwise it’s a seductive but unchecked prediction tool.

Optimization loops: parametric studies and multi-objective design

Modern design uses iterative optimization: run parametric sweeps (vary bulb geometry, CP, stern rake), build surrogate models (response surfaces), and then perform multi-objective optimization balancing resistance, seakeeping, structural weight and fuel burn. Techniques include gradient-based adjoint solvers for local optimization and genetic algorithms for global searches. The outcome is often a family of Pareto-optimal solutions that designers can select from based on commercial priorities.

Practical note: use CFD early for concept screening and later for detailed validation — combine with physical tests to ensure robustness.

14. Experimental Validation: Towing Tanks & Model Tests

Froude scaling and Reynolds scaling challenges

Towing-tank model tests use geometric similarity and Froude number matching to replicate wave-making effects. However, Reynolds number (viscous similarity) rarely matches between model and full scale, so frictional resistance must be corrected. This classical mismatch means model tests excel at wave-resistance prediction but require empirical frictional corrections for full-scale extrapolation.

Extrapolating model test results to full scale

Common practice uses ITTC friction lines or similar empirical laws to estimate full-scale viscous resistance and combine them with model-derived wave-making components. Careful measurement protocols (towing speed control, calm-water conditions, and consistent model surface finish) are essential for reliable extrapolation.

Use of planar motion mechanism (PMM) and self-propulsion tests

·         PMM tests measure added resistance and damping for oscillatory motions (important for seakeeping and maneuvering predictions).

·         Self-propulsion tests—where model is driven by a propulsor—assess propeller–hull interaction, propulsion efficiency, and cavitation onset. These tests provide real data to validate CFD wake predictions and propeller performance charts.

Design best practice: combine CFD with targeted model tests (resistance + self-propulsion) to reduce risk and calibrate numerical models.

15. Operational Practices That Save Fuel

Slow steaming and voyage optimization

Reducing service speed is one of the highest-leverage operational measures. Power in wave-making regimes scales steeply with speed; for example: reduce speed by 10% → power scales by 0.9³ = 0.729 (step-by-step: 0.9 × 0.9 = 0.81; 0.81 × 0.9 = 0.729), so power requirement ≈ 72.9% of original, a 27.1% reduction in required power. Operators weigh that against increased transit time, charter implications, and schedule constraints.

Weather routing and speed optimization based on sea state

Route choice that avoids head seas or strong adverse currents saves fuel. Modern voyage optimization combines weather forecasts, sea-state, and ship performance curves to compute an optimal speed profile minimizing total fuel for a given ETA window.

Hull cleaning, propeller polishing and regular performance monitoring

Routine hull and propeller maintenance recovers efficiency quickly. Continuous performance monitoring (SFOC, shaft power, and speed logs) helps detect degradation early; condition-based cleaning is more cost-effective than calendar-based schedules.

16. Emerging & Innovative Technologies

Air lubrication systems and air cavity technology

Air injection or micro-bubble systems create a low-drag cushion between hull and water. Trials show potential fuel savings, especially for large slow-steaming vessels; installation complexity and energy cost of air compressors must be balanced against savings.

Surface morphing / adaptive hulls and shape-memory materials

Adaptive hull concepts (local camber change, deployable chines) aim to change hull geometry in response to speed/load to maintain optimal hydrodynamics. Shape-memory alloys and compliant skins are in experimental stages and promise dynamic performance gains.

Hybrid and electric propulsion, waste-heat recovery, and energy storage

Hybrid powertrains allow engines to run at efficient load points while batteries or electric drives handle peak demands. Waste-heat recovery (WHR) improves overall energy efficiency on large ships. Fuel type transitions (LNG, methanol, ammonia) also drive rethinking of hull/auxiliary systems.

AI and digital twins for real-time trim and route optimization

Digital twins replicate ship performance in real time, using sensor feeds and machine-learning models to recommend trim, ballast and speed changes. AI-driven route/trim controllers can yield continuous, incremental fuel reductions by learning vessel-specific responses to sea state and loading.

17. Case Studies (short examples)

Container ship: bulbous bow retrofit results

A mid-size container vessel operating at near-constant service speed can often see single-digit percent reductions in fuel burn after a well-engineered bulb retrofit — provided the ship’s operational speed and loading stay within the bulb’s optimized envelope. Feasibility studies using CFD + model checks are essential before retrofit.

Bulk carrier: trim optimization and slow steaming outcomes

Bulk carriers operating on flexible schedules realize notable savings by combining slow steaming with active trim management; small stern-down trims at service speed often reduce wave-making and improve propulsive efficiency, translating to measurable OPEX improvements over long voyages.

High-speed ferry: hull form vs fuel consumption tradeoffs

High-speed ferries optimized with slender hulls or multi-hull forms (catamaran/trimaran) trade higher initial cost and deck complexity for much lower resistance at design speeds. For frequent short hops, these hulls deliver superior fuel-per-passenger metrics, but they require different terminal infrastructure and higher maintenance attention.



FAQs — Hull Hydrodynamics & Fuel Efficiency

1.      What single design change gives the biggest fuel benefit?
There’s no universal “silver bullet.” For a given ship type, the biggest gains come from matching hull form to the vessel’s design operating point (speed, load). Practically, that means choosing the right prismatic/block coefficients and stern/bulb geometry for the intended speed. Operationally, maintaining a smooth hull (anti-fouling + cleaning) is usually the fastest payback.

2.      How much fuel can I save by slowing down a little?
In the wave-making regime power rises steeply with speed. As an example, reducing speed by 10% typically reduces required power to about 0.9³ = 72.9% of original — roughly a 27.1% power saving. For a larger change, dropping from 24 to 18 knots (ratio 0.75) reduces required power to 0.75³ = 42.19% — a 57.81% reduction. Always weigh fuel savings against voyage-time and commercial constraints.

3.      Does hull roughness really matter that much?
Yes. Even thin biofouling layers increase skin friction and reduce effective speed for the same power. The penalty grows with speed. Regular cleaning and modern low-friction coatings are among the most cost-effective measures to restore lost efficiency.

4.      Will adding a bulbous bow always reduce fuel consumption?
No. Bulbs are highly speed- and loading-dependent. They reduce wave-making in a specific Froude-number window; outside that window they can increase resistance. New-build integration or CFD + model validation is essential before retrofitting.

5.      Can CFD replace towing-tank tests?
CFD is indispensable for design exploration and parametric studies, but it’s not a full replacement for experimental validation in critical cases. RANS is fine for mean resistance and many design tasks; DES/LES are needed for unsteady separation/cavitation. Best practice: use CFD for design and optimization, then validate key cases with model or full-scale trials.

6.      How important is hull–propeller matching?
Very important. A propeller working in a non-uniform, highly distorted wake will need more thrust (and more fuel) and will be more prone to cavitation. Matching the propeller’s open-water efficiency to the hull wake—plus tuning rpm/pitch/gearbox—is a high-impact measure for fuel saving.

7.      What are the trade-offs of lightweight materials (aluminium/composites) vs steel?
Lightweight materials reduce lightship weight and can lower wetted area for small/medium fast craft, improving fuel use. But they come with higher CAPEX, different fatigue/corrosion behavior, more complex repair/inspection needs, and sometimes higher life-cycle costs. Choose based on vessel type, operational profile and a full life-cycle cost assessment.

8.      Are appendages (bilge keels, stabilizers, skegs) worth the drag penalty?
That depends. Appendages add drag but provide roll damping, directional stability, or control benefits that may improve overall operational efficiency or safety in real seas. Design them streamlined, consider retractable options, and evaluate whether the operational benefits outweigh the drag cost.

9.      Do active systems like interceptors, trim tabs and digital twins pay off?
Often yes. Active trim/interceptor systems can keep the vessel at an attitude that minimizes resistance in varying conditions. When combined with digital-twin analytics and voyage optimization, continuous small gains add up to meaningful fuel savings over many voyages.
